Three-Tec's extruders feature a compact design, high torque, and intuitive touch-panel operation. They are equipped with easily interchangeable extrusion dies. These can be individually set up and adapted to the extrusion task by means of different screw segments such as conveying, return conveying, kneading or mixing segments.

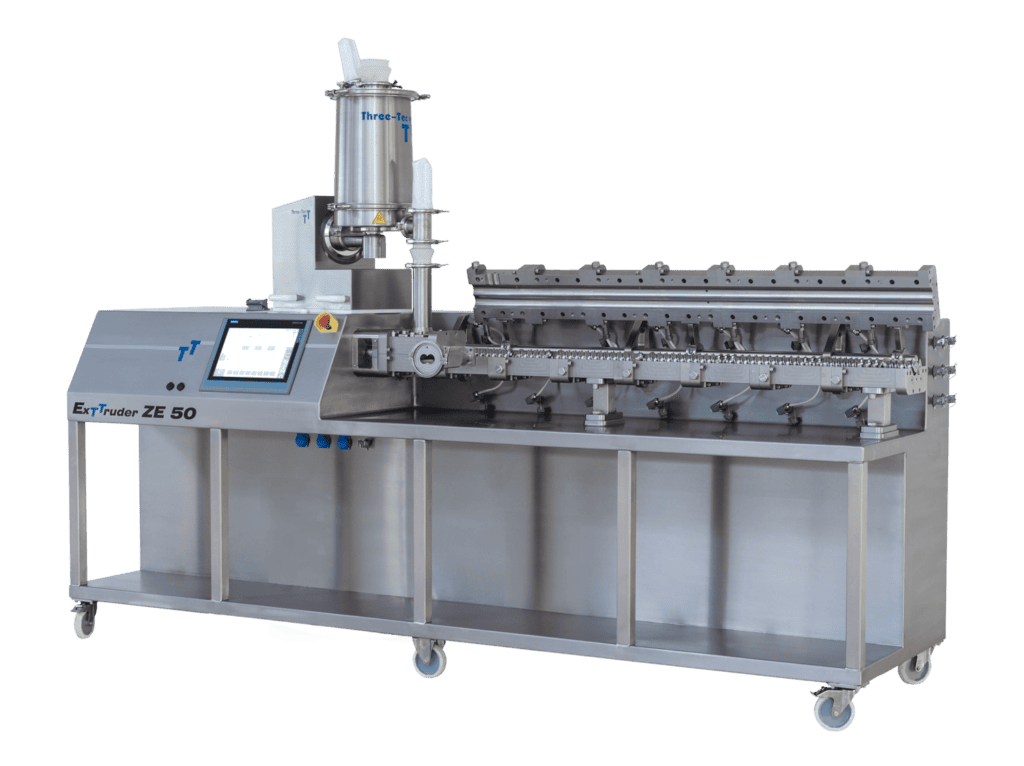

ZE 50 HMI
Technical data
| Screw (mm) | 50 |
| Max. Torque | according to customer requirements |
| Max. Temperature (°C) | 230 (400 optional) |
| Cooling | Water / air or water -/ air mixture |
| heating zones | 1-12 |
| Speed (min-1) | 0.1-300, optionally 1-1'000 or according to customer requirements |
| L/D | 20, 25, 30, 40, 50, 60 or according to customer's requirement. |
| Weight (kg) | ≈ 2'500 |
| Throughput (kg/h) | 150 |
| Drive | low noise servo motor |
| Material parts in contact with product | Stainless steel |
| Material barrel, extrusion dies | various stainless steels hardened, adapted to the customer application |
